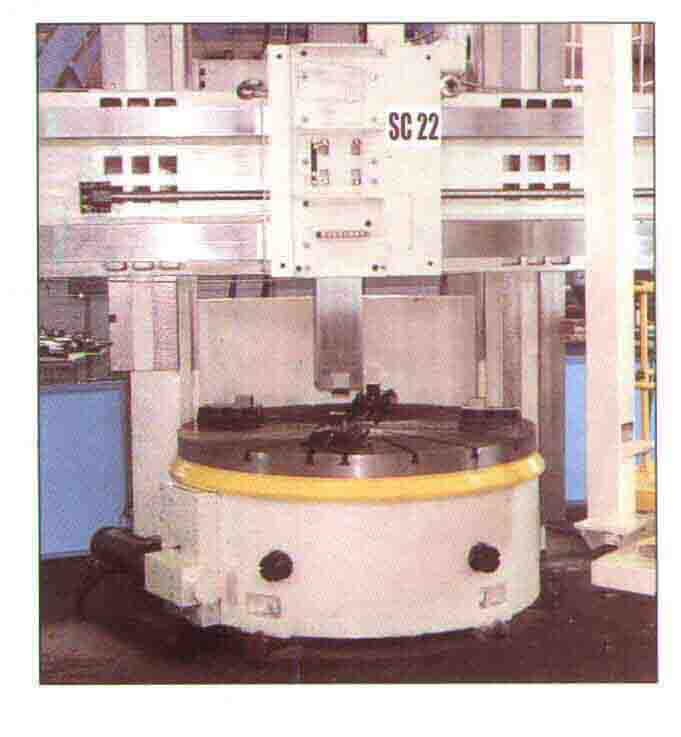

             SC-22 - GENERAL VIEW

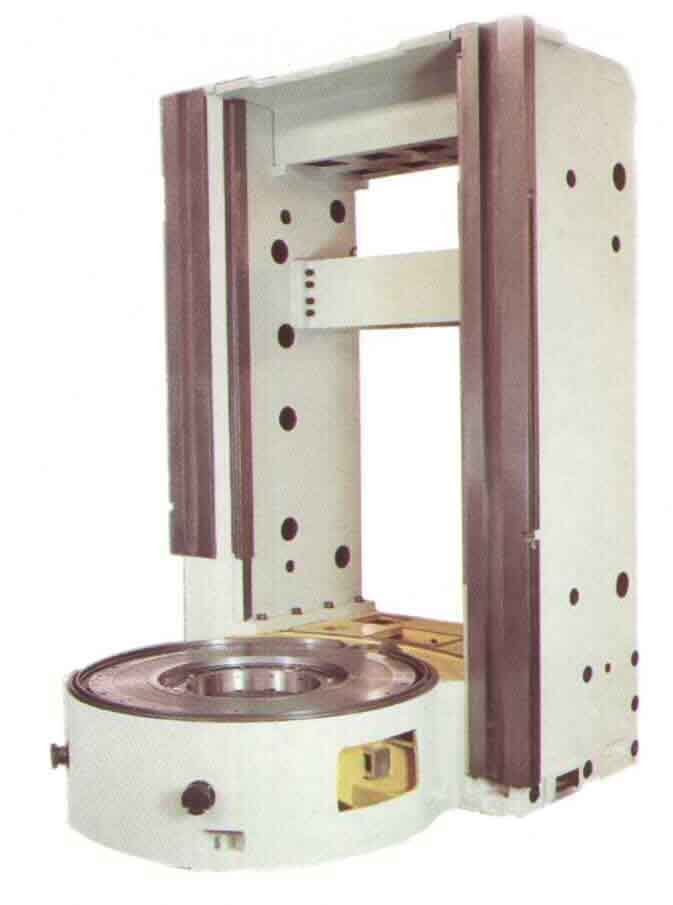

              THE PORTAL is composed of :

bullet

Two columns rigidly fixed at their lower side to the bed and the upper

           sides are linked and stiffened by a fixed cross rail and a linking support.

bullet

High precision guide ways and lead screws for rail motion onto the

           columns.

bullet

Mechanical clamping mechanism with hydraulic unclamping of the

          cross rail.

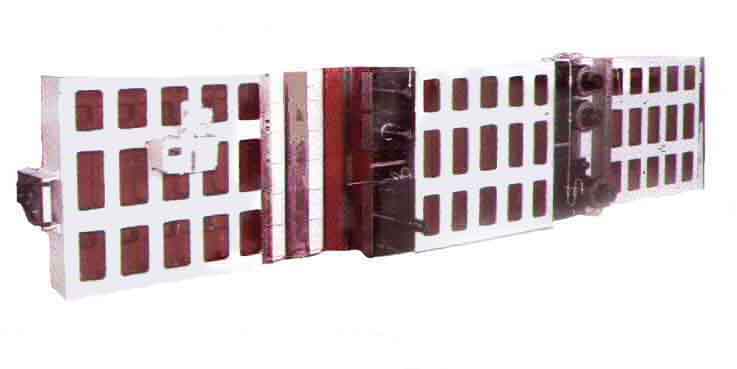

             THE CROSS RAIL

bulletBuild of high quality cast iron internally ribbed.
bullet

Mechanical clamping mechanism with hydraulic unclamping of the

           cross rail.

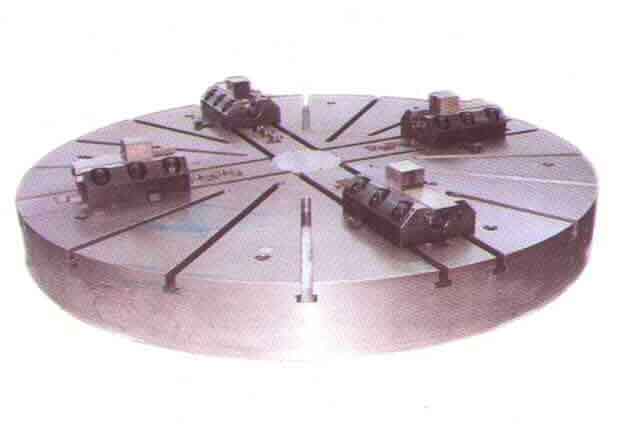

             THE ROTARY TABLE

bulletMade of special cast iron with ribbed structure.
bulletThe motion onto the bed is performed by means of roller bearing.
bulletThe rotation is achieved trough a gear box and an electrical motor
bulletwith infinitely variable speed.

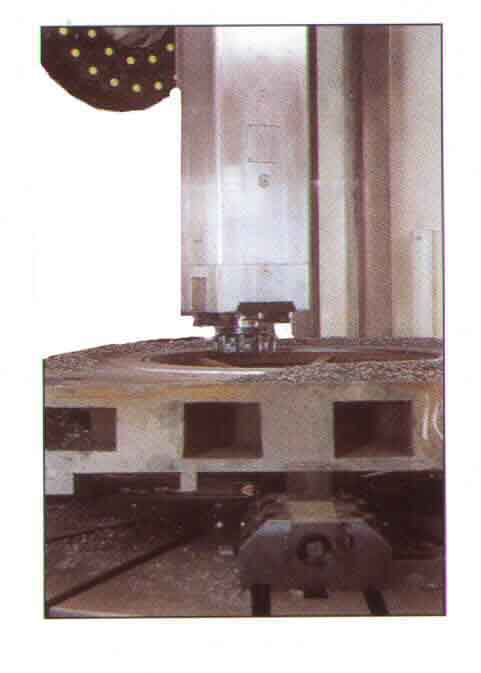

             THE RAM

bulletMade of laminated steel . It has a square construction of 9.8" x 9.8" .
bulletHydraulic clamping and unclamping of the tools.














             THE SADDLE

bullet

X axis movement is achieved by means of ball screw on the rail guide

          ways.
